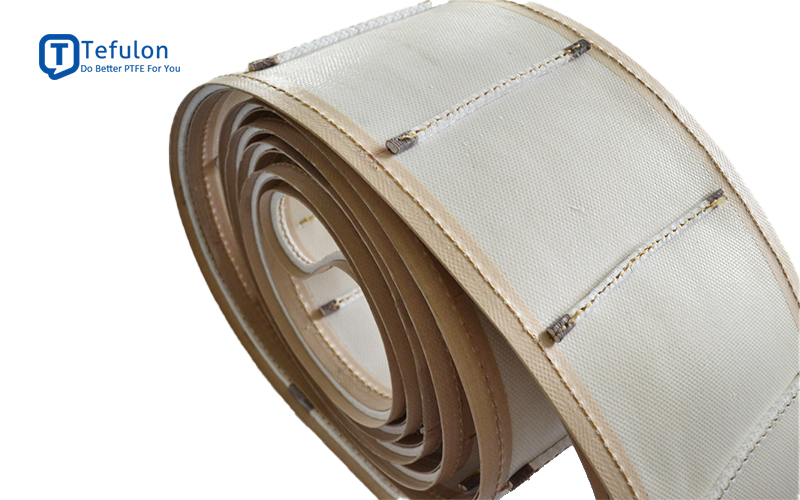

PTFE輸送帶采用優質高度進口玻璃纖維及凱芙拉（芳綸）為基材紡織成高強度的網狀基布，再涂覆優良高質的特氟龍樹脂，制成特氟龍（PTFE）網格輸送帶的基布，加工而成，特氟龍網格輸送帶應用范圍：紡織印染，印花烘干導帶，絲網印刷，紫外線烘干，UV系列光固機，膠印機，松式烘干機，無紡布烘燥機，高周波烘干機，食品烘培機導帶，溫控烘房，熔劑型油墨的快速干燥和一般含水份物品烘干。

特氟龍PTFE烘干輸送帶的主要特點：

1.尺寸穩定，強度高，延伸系數小于5‰.

2.而溫性好，連續工作-70℃-260℃。

3.表面磨擦系數為0.05-0.1，介電常數小。

4.抗老化，不燃燒，抗粘性優異，易于清洗附著其表面的各種油漬，污點或其它附著物。

5.耐各種強酸，堿，鹽和有機溶劑等化學藥品的腐蝕。

特氟龍輸送帶的應用范圍：

1：絲網、印刷：松式烘干機、膠印機、UV系列光固機、紙張過油烘干、紫外線烘干、塑膠制品絲印烘干等烘道、烘房輸送帶。

2：紡織、印染：印花烘干、漂染布烘干、面料縮水烘干、無紡布烘干等烘道、烘房輸送帶。

3：其它物品：高周波烘干、微波烘干、烘烤、包裝物品熱收縮、一般含水份物品烘干、熔劑型油墨的快速干燥等烘房導帶

Food production

The production of certain foods benefits from the non-stick properties than PTFE (Teflon) offers. A key area is the high volume cooking of meats such as chicken and bacon. We refer to this as contact cooking or grilling. The conveyor belting is typically 650mm or 1050mm wide and works in pairs as a top and bottom belt. The two conveyor belts are very close together and trap the product between then as they move along. Heat is provided by employing oil heated hot plates that allow the meat to cook as it conveys. The PTFE coating prevents food from sticking to the belting, as well as being able to handle high temperatures involved. The principle is very similar to the use of Teflon on non-stick pans.

PTFE coated fabrics can also be used as belting when producing flatbreads. An example of this is the production of flour Tortillas. A single conveyor belt carried small balls of dough along a conveyor while a fixed hot plate squashes the mixture in a round flat tortilla.

Textiles

PTFE coated belting is extensively used when processing textiles. Similar to contact grilling, the belts while in pairs, which are top and bottom. They are used to thermally bond two layers of textiles together, which usually involved heating a glue or adhesive while applying pressure.

Open Mesh PTFE Belting

Open area PTFE belting is very similar to close weaver versions; however, there different reasons and applications for using this.

The main application for mesh is the use of a carrier belt within a hot air oven. Hot air ovens can work for both textiles and food; however, other specialist applications such as can drying also benefit.

Mesh belting is usually supplied with an opening size of 4mm square; however and smaller opening s are also available from our stocks.

Below you will see a few examples of where open mesh belting is working.

Food Production

The open mesh works on many types of conveyors that process food. An example of this is the drying of cereals. Cereals are conveyed at just the right speed and temperature to ensure they dry to the exact level.

Beverage can production

Aluminum beverage cans have a special lacquer on the inside of them to provide a food-safe barrier. orThis is sprayed on to the inside of the can then required to cure via heat. Beverage cans convey on the PTFE mesh belt, which transports them through a hot air oven. The mesh allows air to easily circulate the beverage cans as well as the conveyor belt for maximum efficiency.
